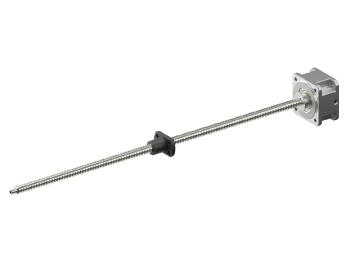

LA4212C30

Mounting Adapter for Linear Actuator
Frame Size	42 mm
Lead	12 mm
Stroke	300 mm
Repetitive Positioning Accuracy	±0.05 mm
Transportable Mass Horizontal	10 kg
Transportable Mass Vertical	5 kg
Drive Screw Type	Lead Screw
Screw Diameter	Φ8 mm
Permissible Thrust, Permissible Speed
100 N (0–80 mm/s) · 80 mm/s
50 N (0–180 mm/s) · 180 mm/s
Self-Locking Force	0 N
Materials	Screw Shaft: Stainless Steel
Nut: PPS
Applicable Product	2-Phase·Stepping Motors Frame Size 42 mm
