112932

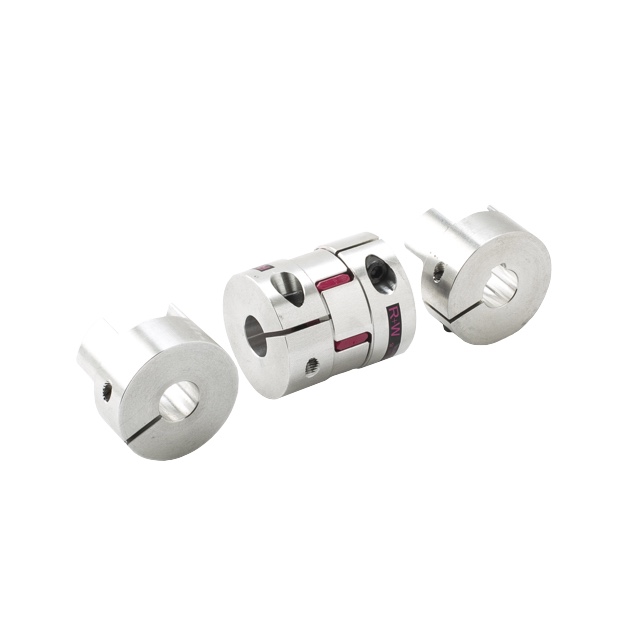

Coupling GESM14 F9,53C F10
Elastomer coupling with clamping hubs
Hole diameter : 9.53mm with keyway / 10mm no keyway
Max. transmissible torque: 4,1Nm
Screw tightening torque: 1,4Nm
Elastomer hardness: 98 Sh A
Assembly length tolerance after mounting: +/-1mm
Maximum radial misalignment: 0,09mm
Maximum angular misalignment: 0,9°
