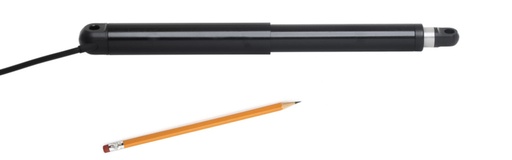

CON25 series

The most compact & space-saving electric in-line actuator in the CONCENS product line. Our smallest actuator.

Its size, efficiency, and elegant design make this electric in-line actuator the perfect match for almost any small lifting task where space is limited.

• SPEED 1.5 to 5 mm/s
• VOLTAGE 12/24 VDC
• LOAD CAPACITY 110 to 370 N
• STROKE LENGTH 50 to 250 mm

Customization options:

• Other stroke lengths and built-in dimensions available on request
• Brackets made to fit your application
• With or without Hall sensors for positioning/synchronization
• Available in any RAL color

The smallest electric in-line actuator in our product line handles small lifting tasks. In addition to the elegant design.

Our con25 is ideal where size is limited by design or functionality3. The electric in-line actuator is made of powder-coated aluminum (IP66) with an aluminum housing and piston, creating an elegant design that saves space.

Compatible controllers, handsets, and batteries for mobile use are available.
